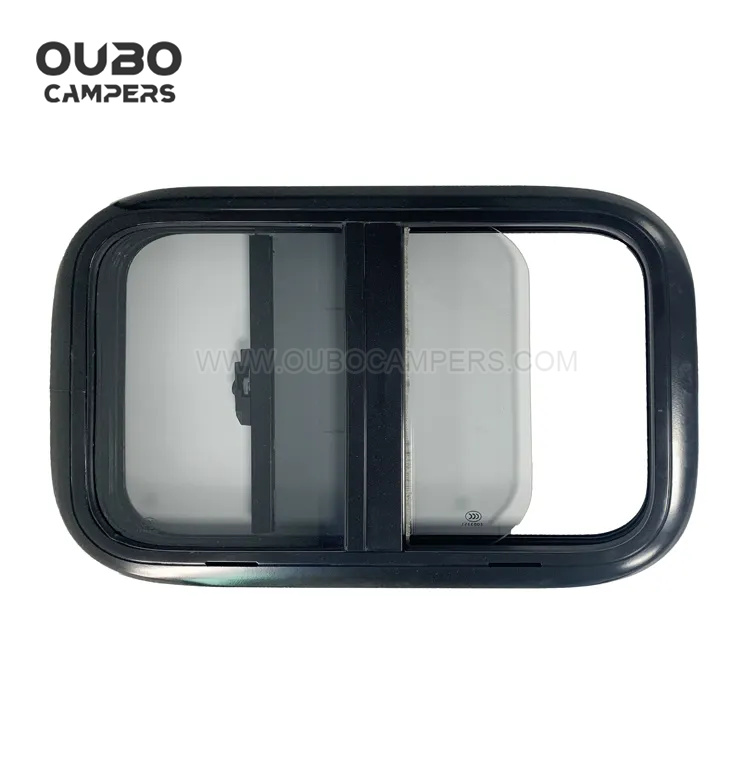

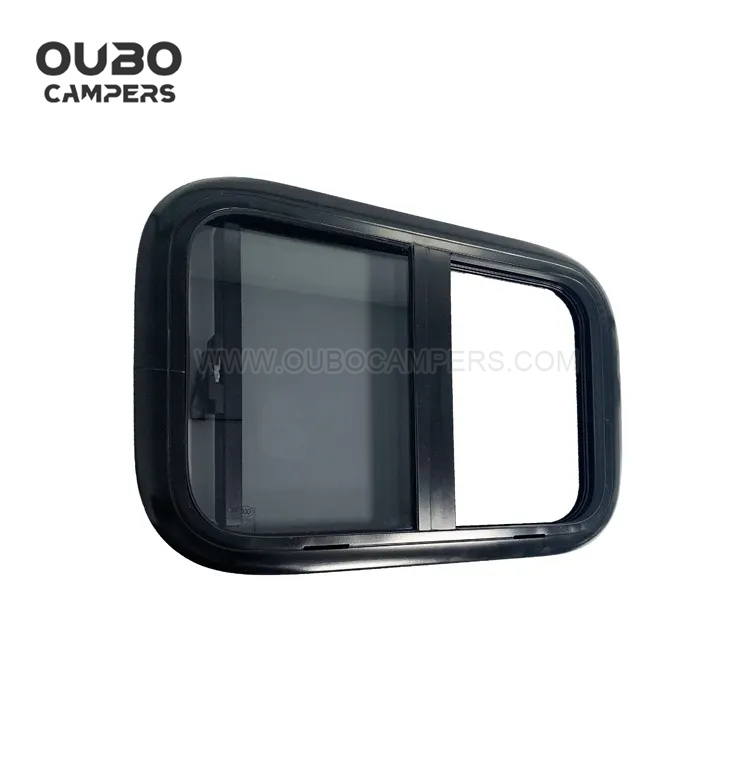

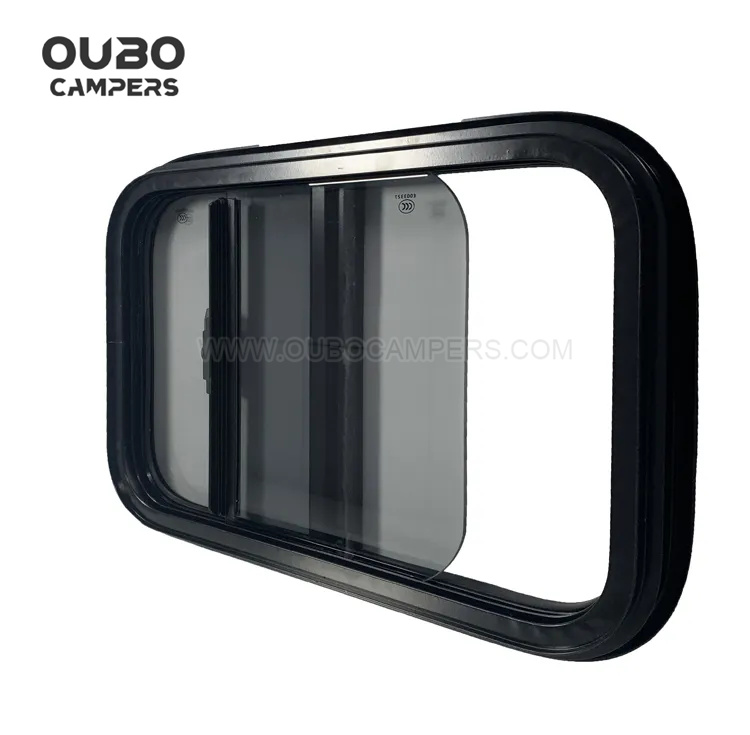

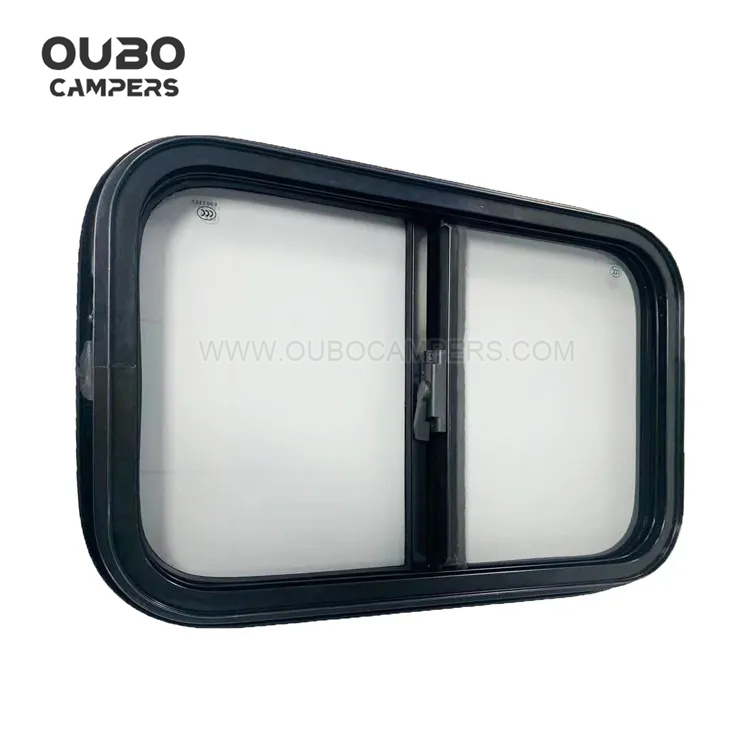

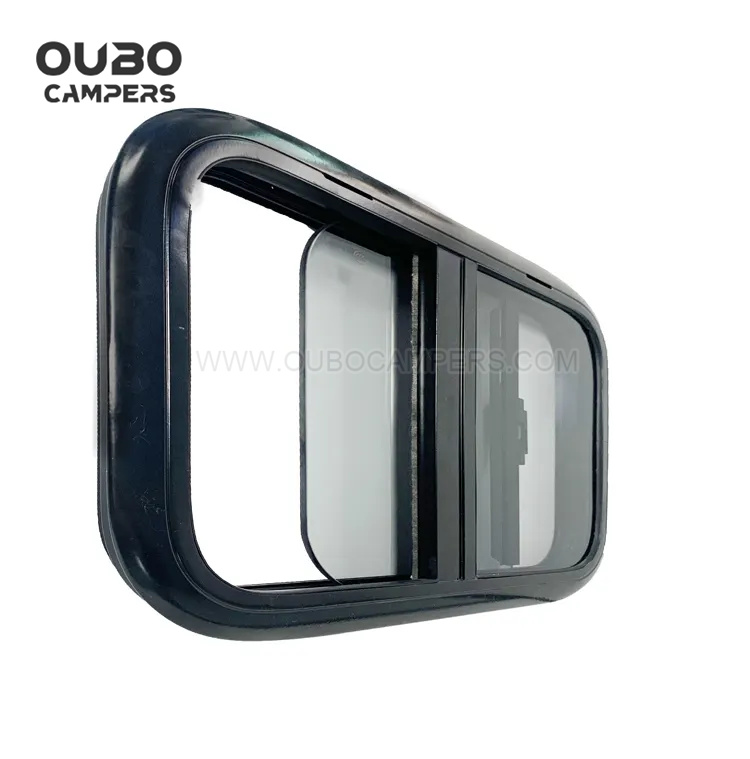

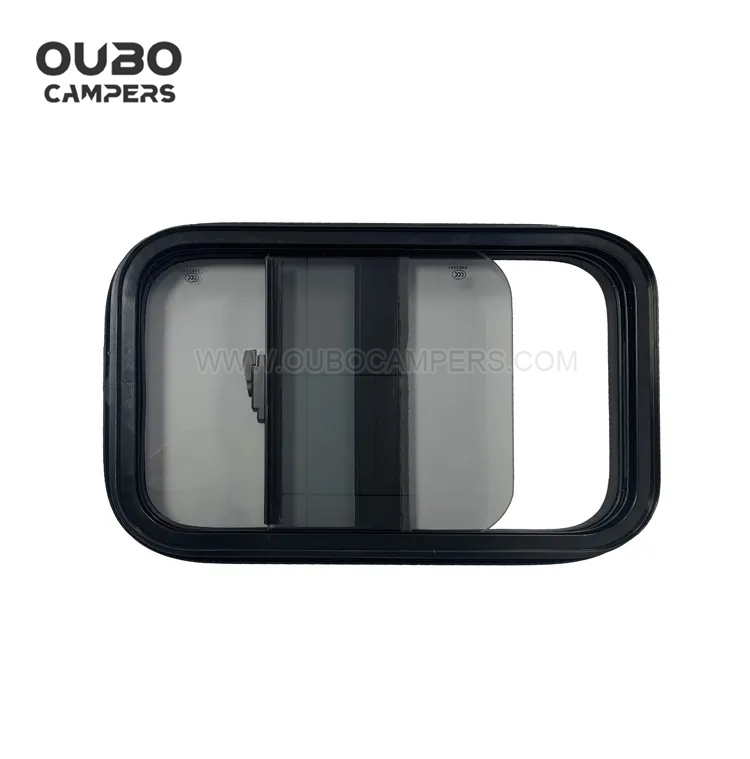

Double Arylic Glass RV Sliding Window, Round Corner, Acrylic Window
NOTE: The price US$149 is for the sliding window. It does not include the price of the shipping.
Shipping is by sea. Please contact us to inquiry about the shipping cost.
Parameter Information
- Type：RV sliding window
- Main materials：Aluminum alloy frame ABS inner frame Double layer UV resistant acrylic glass (optional tempered glass)
- Installation method：Clip on installation
- Thickness of car board: Adjustable, 25-55mm
- Color: 1. Frame: black (standard), white, silver gray or other colors (customizable) 2. Inner frame: white 3. Glass: transparent gray
Features
- Simple and convenient installation, can greatly save Installation time.
- The inner frame has no hole on the surface, which is more simple and beautiful.
- Hidden design of screen shade. It is easy to open and can stop at multiple angles.
| No. | Order size L*H( mm) | Hole size L*H( mm) | Dimensions L*H(mm) | R angle (aluminum alloy frame) |
| 1 | 350*280 | 350*280 | 380*310 | 4-R7 |
| 2 | 500*300 | 500*300 | 530*330 | 4-R7 |
| 3 | 500*350 | 500*350 | 530*380 | 4-R7 |
| 4 | 500*450 | 500*450 | 530*480 | 4-R7 |
| 5 | 500*500 | 500*500 | 530*530 | 4-R7 |
| 6 | 700*400 | 700*400 | 730*430 | 4-R7 |
| 7 | 800*500 | 800*500 | 830*530 | 4-R7 |
| 8 | 900*450 | 900*450 | 930*480 | 4-R7 |
| 9 | 1000*500 | 1000*500 | 1030*530 | 4-R7 |
| 10 | 1100*550 | 1100*550 | 1130*580 | 4-R7 |
| 11 | 1200*500 | 1200*500 | 1230*530 | 4-R7 |
| 12 | 1450*550 | 1450*550 | 1480*580 | 4-R7 |
| L:The width of the window installation; H:The height of the window installation. | ||||
| Note: Other specifications can be customized according to your needs. | ||||
